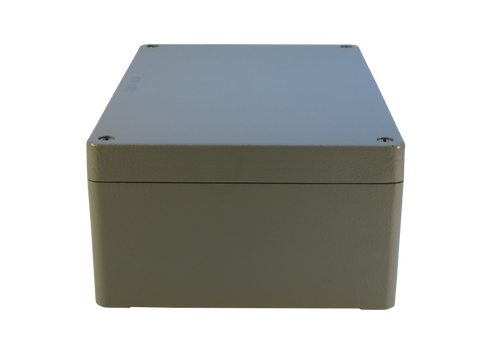

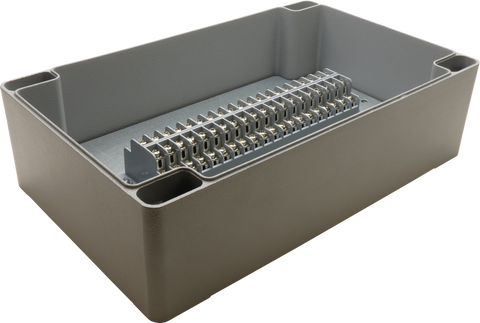

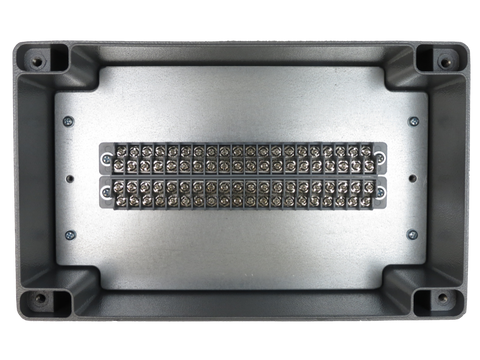

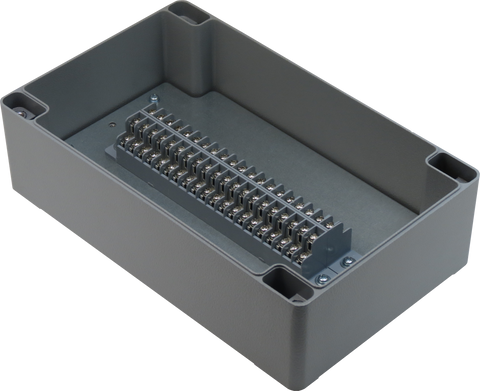

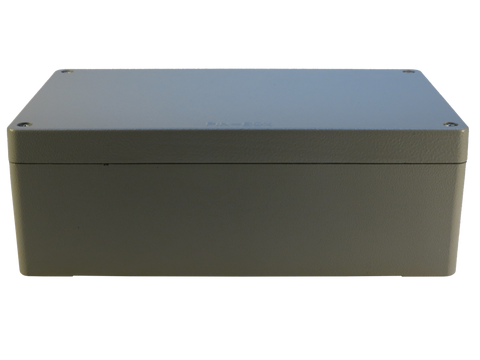

Enclosure with Terminal Block, Center Mounted, 40 Circuits, Cast Aluminum with Solid Cover
Constructed from Cast Aluminum this Terminal Enclosure is a junction box with integrated terminal block. The Aluminum enclosure with 40 positions is waterproof and it is useful for wiring trunking... read more
What's Included
- Base: Grey Cast Aluminum
- Cover: Grey Cast Aluminum
- Mounting Hardware: None
Downloads
Datasheet [PDF] Click to Download
Product Specifications
- Color : Grey
- Height : 3.543 in
- Ingress Protection : IP67 / NEMA 12X
- Length : 6.299 in
- Material : Cast Aluminum
- Width : 10.236 in
Electrical Specifications
- Input Current: 15 Ampers
- Rated Frequency: 60Hz
- Rated Input Voltage: 120 Volts
Safety Specifications
- Certificate Number: U8 15 12 71883 009
- Certifying Agency: TUV-SUD
- Countries: Canada, USA
- Standards: UL 508A:2013/R:2014-01, CAN/CSA-C22.2 No. 14:2013
Description
Constructed from Cast Aluminum this Terminal Enclosure is a junction box with integrated terminal block. The Aluminum enclosure with 40 positions is waterproof and it is useful for wiring trunking applications and control connections. Frequent uses include industrial machinery, robotics, welding machines, vessels and automobiles, petrochemical plant facilities, oil feeder and gas supplying facilities. Easy to install, it features molded dimensions for mounting hole locations and grounding screws on the cover and the base.
This all-in-one product is an innovative solution to maximize productivity and save resources. Practical, more esthetically pleasing and safe, The Terminal Enclosure From Lite Cycle Provides protection for wiring junctions.
