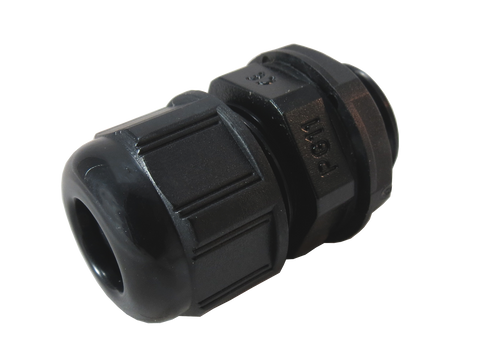

Cable Gland PG11

Manufactured from Nylon, Lite Cycle's cable gland offers superior strength and protection for cables and wiring used in electrical instrumentation and automation systems. A special seal ensures effective cable support...  read more

PG11-GR

  • $122
  •

What's Included

Downloads

Datasheet [PDF] Click to Download



Description

Manufactured from Nylon, Lite Cycle's cable gland offers superior strength and protection for cables and wiring used in electrical instrumentation and automation systems. A special seal ensures effective cable support and waterproof-ability. Rated IP66 (waterproof and dustproof) and NEMA 4X, this product is light in weight and corrosion resistant.



Specifications

  • Hole Size : 0.734 in. (- 0.000 / + 0.030)
  • Overall Length : 1.56 in.
  • Installed Height* : 1.1in.
  • Cable Max Diameter : 0.34 in. OD
  • Cable Min Diameter : 0.27 in. OD
  • Nut Size : 24.5mm

* Installed Height is from the face of the panel to the end of the nut this dimension may vary based wire size used and torques applied during installation.
